он сейчас как второстепенный подключен, могу с него видео запускать... очень меня самого удивил этот риад файлур... кажется что ему что-то помешало провести тесты вот сэлф-тэст лог:
smartctl version 5.38 [i686-pc-linux-gnu] Copyright (C) 2002-8 Bruce Allen
Home page is
Тільки зареєстровані користувачі бачать весь контент у цьому розділі
=== START OF INFORMATION SECTION ===
Model Family: Western Digital Caviar SE family
Device Model: WDC WD800JB-00JJA0
Serial Number: WD-WMAM93017082
Firmware Version: 05.01C05
User Capacity: 80,026,361,856 bytes
Device is: In smartctl database [for details use: -P show]
ATA Version is: 6
ATA Standard is: Exact ATA specification draft version not indicated
Local Time is: Sun Mar 13 15:48:15 2011 EET
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

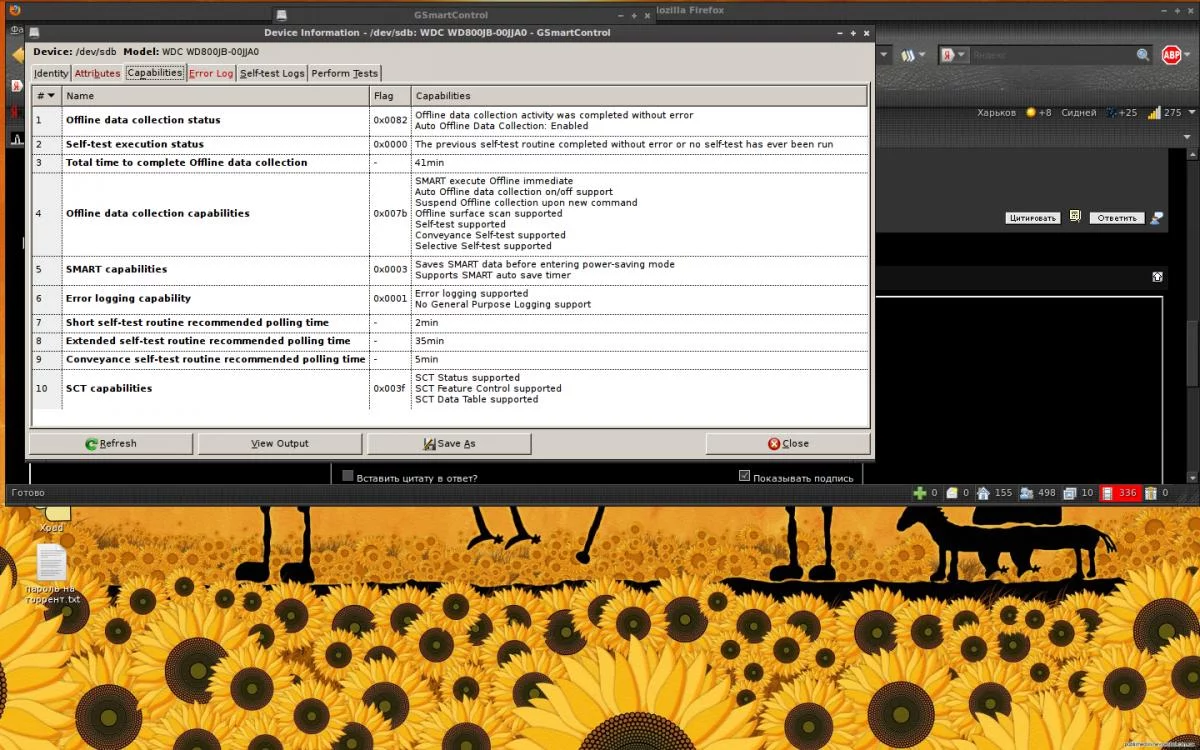

General SMART Values:
Offline data collection status: (0x82) Offline data collection activity
was completed without error.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 121) The previous self-test completed having
the read element of the test failed.
Total time to complete Offline
data collection: (2460) seconds.
Offline data collection
capabilities: (0x7b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
No General Purpose Logging support.
Short self-test routine
recommended polling time: ( 2) minutes.
Extended self-test routine
recommended polling time: ( 35) minutes.
Conveyance self-test routine
recommended polling time: ( 5) minutes.
SCT capabilities: (0x003f) SCT Status supported.
SCT Feature Control supported.
SCT Data Table supported.

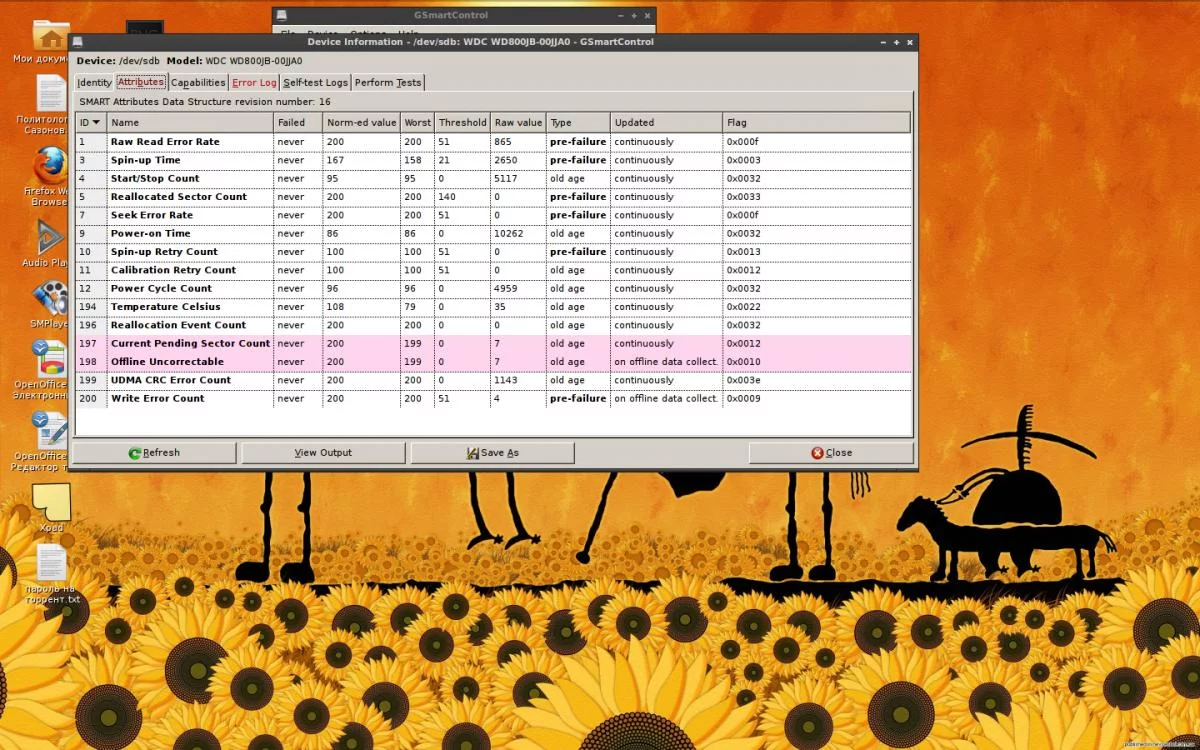

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE
1 Raw_Read_Error_Rate 0x000f 200 200 051 Pre-fail Always - 865
3 Spin_Up_Time 0x0003 167 158 021 Pre-fail Always - 2650
4 Start_Stop_Count 0x0032 095 095 000 Old_age Always - 5117
5 Reallocated_Sector_Ct 0x0033 200 200 140 Pre-fail Always - 0
7 Seek_Error_Rate 0x000f 200 200 051 Pre-fail Always - 0
9 Power_On_Hours 0x0032 086 086 000 Old_age Always - 10263
10 Spin_Retry_Count 0x0013 100 100 051 Pre-fail Always - 0
11 Calibration_Retry_Count 0x0012 100 100 051 Old_age Always - 0
12 Power_Cycle_Count 0x0032 096 096 000 Old_age Always - 4959
194 Temperature_Celsius 0x0022 104 079 000 Old_age Always - 39
196 Reallocated_Event_Count 0x0032 200 200 000 Old_age Always - 0
197 Current_Pending_Sector 0x0012 200 199 000 Old_age Always - 7
198 Offline_Uncorrectable 0x0010 200 199 000 Old_age Offline - 7
199 UDMA_CRC_Error_Count 0x003e 200 200 000 Old_age Always - 1143
200 Multi_Zone_Error_Rate 0x0009 200 200 051 Pre-fail Offline - 4
SMART Error Log Version: 1
ATA Error Count: 2159 (device log contains only the most recent five errors)
CR = Command Register [HEX]
FR = Features Register [HEX]
SC = Sector Count Register [HEX]
SN = Sector Number Register [HEX]
CL = Cylinder Low Register [HEX]
CH = Cylinder High Register [HEX]
DH = Device/Head Register [HEX]
DC = Device Command Register [HEX]
ER = Error register [HEX]
ST = Status register [HEX]
Powered_Up_Time is measured from power on, and printed as
DDd+hh:mm:SS.sss where DD=days, hh=hours, mm=minutes,
SS=sec, and sss=millisec. It "wraps" after 49.710 days.
Error 2159 occurred at disk power-on lifetime: 10238 hours (426 days + 14 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 00 95 fb a6 e8 Error: UNC at LBA = 0x08a6fb95 = 145161109
Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
40 00 00 00 fb a6 08 58 00
16.530 READ VERIFY SECTOR(S)
40 00 00 00 fa a6 08 58 00
16.530 READ VERIFY SECTOR(S)
40 00 00 00 f9 a6 08 58 00
16.525 READ VERIFY SECTOR(S)
40 00 00 00 f8 a6 08 58 00
16.520 READ VERIFY SECTOR(S)
40 00 00 00 f7 a6 08 58 00
16.520 READ VERIFY SECTOR(S)
Error 2158 occurred at disk power-on lifetime: 10238 hours (426 days + 14 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 00 00 a2 53 e8 Error: UNC at LBA = 0x0853a200 = 139698688
Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
40 00 00 00 a2 53 08 58 00:24:01.975 READ VERIFY SECTOR(S)
40 00 00 00 a1 53 08 58 00:24:01.970 READ VERIFY SECTOR(S)
40 00 00 00 a0 53 08 58 00:24:01.970 READ VERIFY SECTOR(S)
40 00 00 00 9f 53 08 58 00:24:01.965 READ VERIFY SECTOR(S)
40 00 00 00 9e 53 08 58 00:24:01.960 READ VERIFY SECTOR(S)
Error 2157 occurred at disk power-on lifetime: 10237 hours (426 days + 13 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 00 ab 50 fd e5 Error: UNC at LBA = 0x05fd50ab = 100487339
Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
40 00 00 00 50 fd 05 58 00:16:35.755 READ VERIFY SECTOR(S)
40 00 00 00 4f fd 05 58 00:16:35.755 READ VERIFY SECTOR(S)
40 00 00 00 4e fd 05 58 00:16:35.750 READ VERIFY SECTOR(S)
40 00 00 00 4d fd 05 58 00:16:35.745 READ VERIFY SECTOR(S)
40 00 00 00 4c fd 05 58 00:16:35.745 READ VERIFY SECTOR(S)
Error 2156 occurred at disk power-on lifetime: 10237 hours (426 days + 13 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 00 62 80 f2 e0 Error: UNC at LBA = 0x00f28062 = 15892578
Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
40 00 00 00 80 f2 00 58 00:03:39.930 READ VERIFY SECTOR(S)
40 00 00 00 7f f2 00 58 00:03:39.930 READ VERIFY SECTOR(S)
40 00 00 00 7e f2 00 58 00:03:39.925 READ VERIFY SECTOR(S)
40 00 00 00 7d f2 00 58 00:03:39.925 READ VERIFY SECTOR(S)
40 00 00 00 7c f2 00 58 00:03:39.920 READ VERIFY SECTOR(S)
Error 2155 occurred at disk power-on lifetime: 10237 hours (426 days + 13 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 00 21 40 f2 e0 Error: UNC at LBA = 0x00f24021 = 15876129
Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
40 00 00 00 40 f2 00 58 00:03:37.585 READ VERIFY SECTOR(S)
40 00 00 00 3f f2 00 58 00:03:37.585 READ VERIFY SECTOR(S)
40 00 00 00 3e f2 00 58 00:03:37.580 READ VERIFY SECTOR(S)
40 00 00 00 3d f2 00 58 00:03:37.580 READ VERIFY SECTOR(S)
40 00 00 00 3c f2 00 58 00:03:37.575 READ VERIFY SECTOR(S)

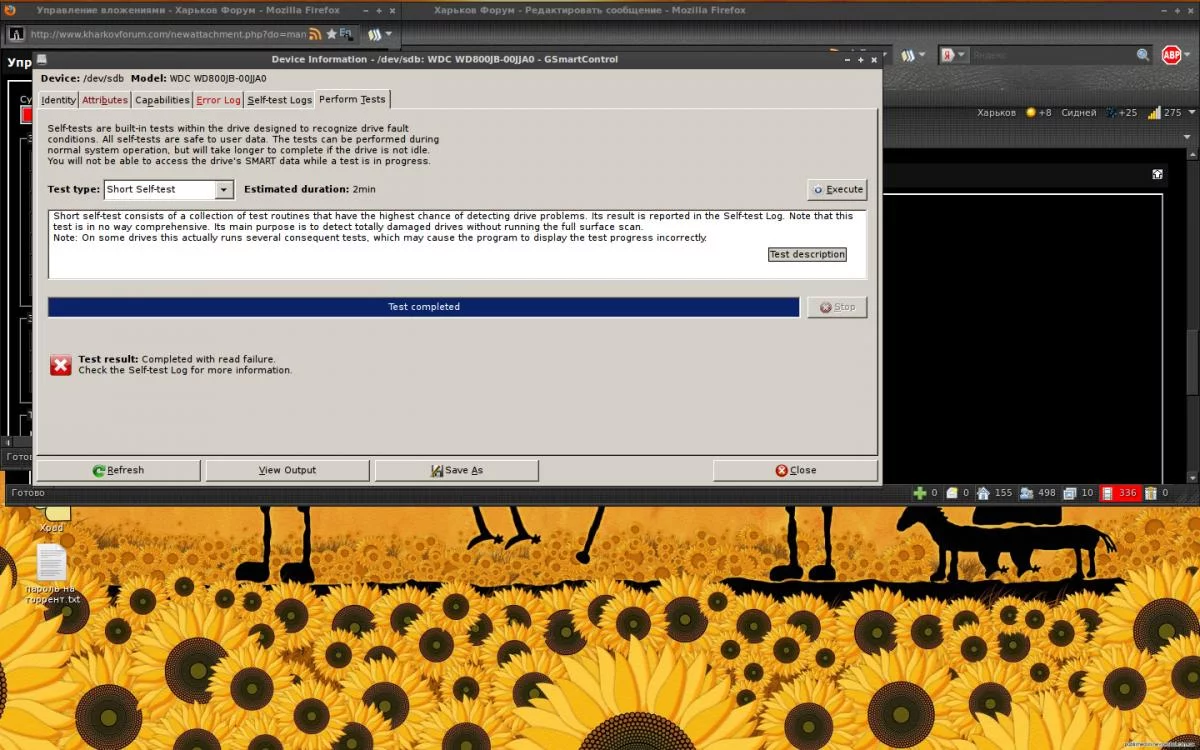

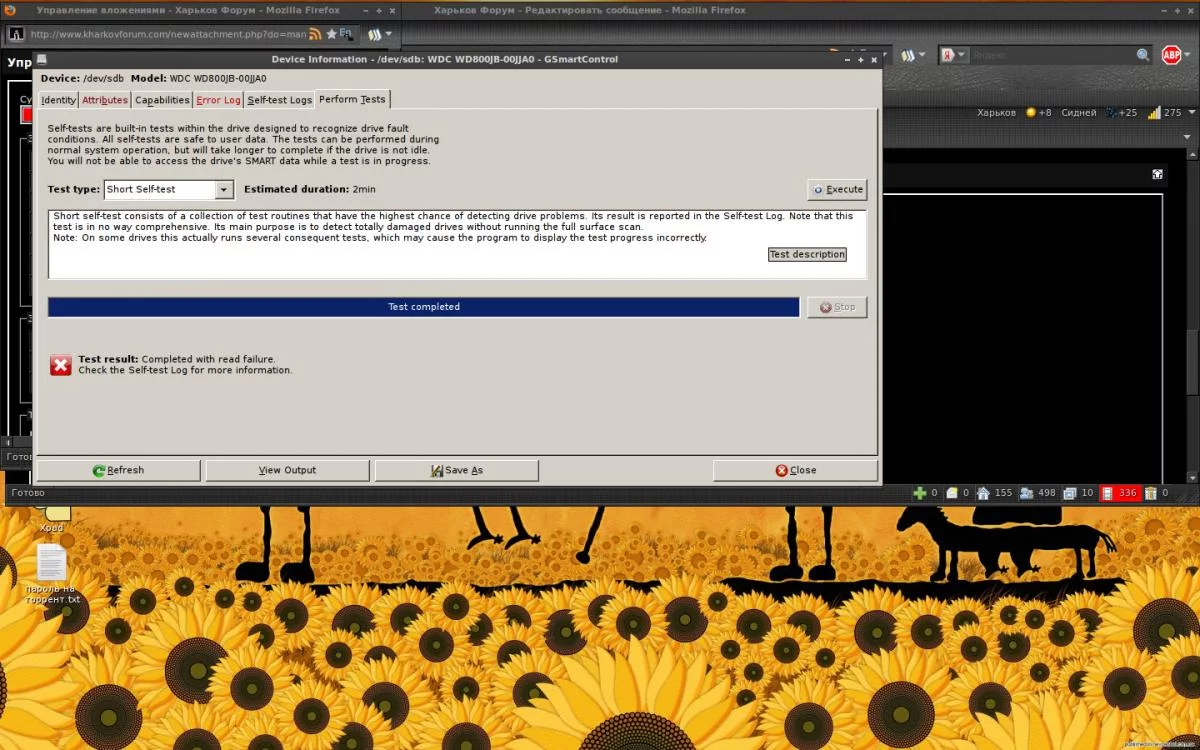

SMART Self-test log structure revision number 1
Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error
# 1 Extended offline Completed: read failure 90% 10263 7024629
# 2 Short offline Completed: read failure 90% 10262 7024629
# 3 Conveyance offline Completed: read failure 90% 10260 7024629
# 4 Short offline Completed: read failure 90% 10260 7024629
# 5 Extended offline Completed: read failure 90% 10258 7024629
# 6 Short offline Completed: read failure 90% 10258 7024629
# 7 Extended offline Completed: read failure 90% 10257 7024629
# 8 Conveyance offline Completed: read failure 90% 10257 7024629
# 9 Short offline Completed: read failure 90% 10257 7024629
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
. Еще когда он отключается бывает так что я ему питание поменяю и он включается
- может там что-то подскажет причину глюка
